Products · SCADA / Station Data Monitoring
Supervise your station, remotely and easily.
SDM combines plug-and-play hardware with secure cloud software to collect, process and visualize every signal in your station — in real time.
How it works
From signal to dashboard.
1
Collection
WYSE Box reads any PLC via Modbus, Profinet or OPC-UA.
2
Processing
Alarms and scenarios triggered from tag values.
3
Visualization
Dashboards and Process Flow Diagrams, in real time.
4
Sharing
Share dashboards with the station owner or H2 supplier.
At a glance
One second, standard data sync.
Real-time dashboards
Gauges, graphs and grids, fully customizable.
Process Flow Diagrams
Design your station, color rules included.
Alerts & alarms
Routed to maintenance teams by criticality.
Resilient by design
Data is backed up locally through outages.

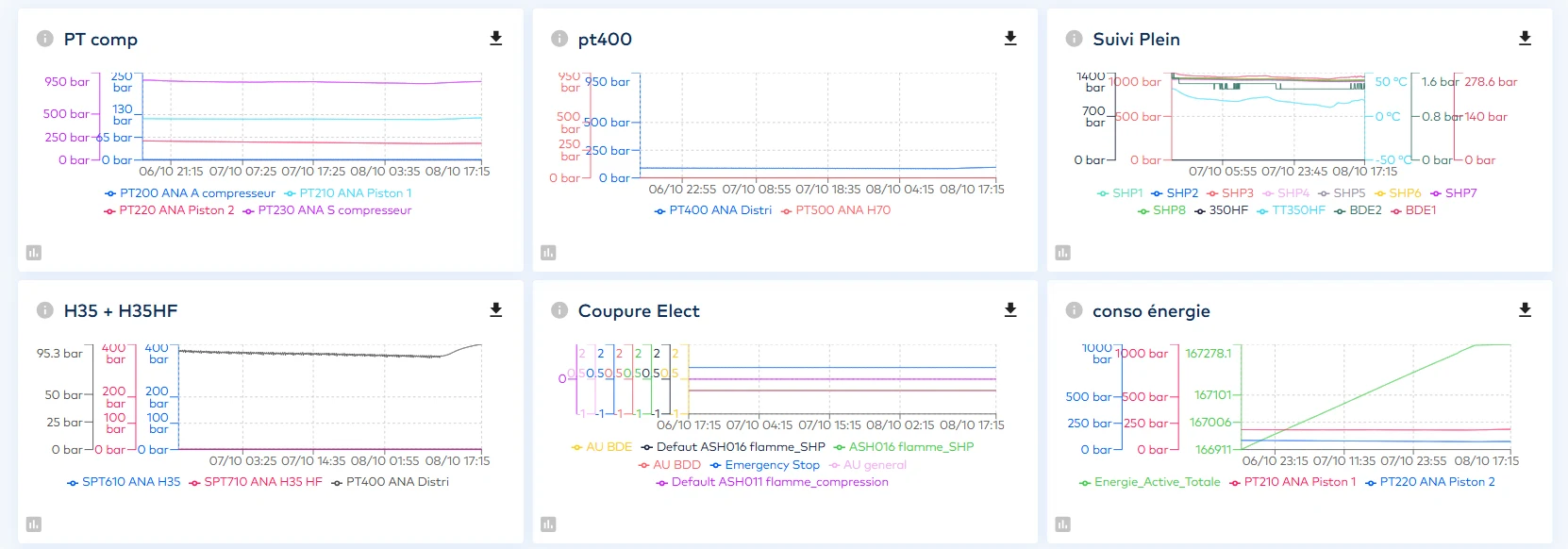

A real look at SDM's live dashboards.
Overview
Hardware to dashboard, in one view.
Datasheet summary
What SDM does.
- Interfaced with all equipment installed in the station
- Charts, graphs, histograms, live PFD animated diagrams
- Alerts and notifications engine
- Standard data synchronization every 1 second
- Real-time stock level overview & alerts
- Optional stock visibility shared with station supplier
FillnDrive WYSE Box
Dimensions112 × 84 × 25 mm
Weight450 g
Operating temperature-40°C to 80°C
Power supply10V to 36V DC
Power consumption2–7 W
ProtocolsModbus, Profinet, OPC-UA
Ready when you are
